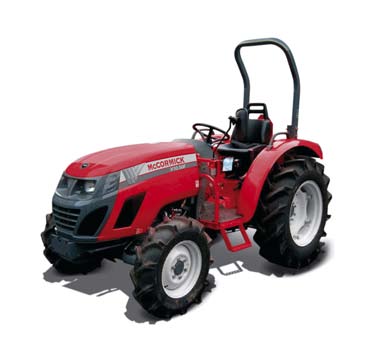

McCormick X10 - 50f

John Weetman - Farm Machinery

The X10.50F series has been designed for use where space is at a premium, especially between orchards rows, where its tight turning radius allows for exceptional manoeuvrability.

To assist tight turns, a pushbutton control allows the operator to increase the speed of the outer front wheel as the tractor turns, thereby reducing the steering angle for improved tractor productivity. The X10.50F tractor uses a 49-hp, 4-cylinder, naturally-aspirated engine that meets the Tier 3 emission standards, while delivering quiet operation and excellent fuel economy.

This model features a mechanical transmission with creeper and synchro shuttle under the steering wheel that provides 4 gears and 3 ranges giving a total of 16 FWD+16 REV speeds.

The hydraulic system delivers a maximum flow rate of 49,9 l/min and the Cat. 1 three-point hitch lifts up to 1013 kg. The X10.50F comes as standard with two remote valves and can be optionally equipped with a joystick for the use of a front-end loader. The mechanicallyoperated rear PTO provides two speeds 540/1000 rpm.

In addition, an auto PTO function allows the operator to automatically engage and disengage the PTO drive, when raising and lowering the implement, for improved headland management control.

The iso-mounted platform with fully-adjustable sprung seat offers operators a comfortable driving position and the foldable ROP S allows the tractor to work with ease under low orchard and vineyard canopies and inside greenhouses.

For Full Specs, Download the Brochure here
